Part#17U-06-1000-4
Description

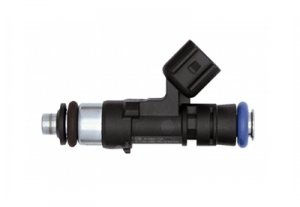

Set of 4 1000cc injectors for Hyundai Genesis Coupe 2.0T 09-12, Subaru 2.5RS 99-03, Sentra QG18DE 00-06, Sentra QR25DE 02-12
- Connectors are included
All DeatschWerks injectors feature the following:
- E85 compatibility
- Flow rates and set balancing in-house by DeatschWerks
- Flow balanced to within 1-2% (flow report included)
- Excellent spray pattern and atomization for optimized idle and tuning
- Technical assistance and tuning data available via phone or email
- 12-month comprehensive warranty
| Fuel Pressure Range | 40-80 psi |
| Minimum Pulse Width | 1.0 ms |
| Maximum Duty Cycle | 93% |
| Coil Impedance | 12.4 ohm |
| Injector Type | Bosch EV14 (standard) |
| Connector Type | us-car |
Nominal Static Flow Rate
| PSI > | 43 | 58 | 70 | 80 | 90 | 100 |
| cc/min | 946 | 1119 | 1263 | 1370 | 1450 | 1527 |
| lb/hr | 90.1 | 106.6 | 120.3 | 130.5 | 138.1 | 145.4 |
Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order.
Offset in Milliseconds (Pressure vs Voltage)
| PSI > VOLTS v |
43 | 58 | 70 | 80 | 90 | 100 |
| 8 | 2.45 | 2.87 | 3.30 | 8.00 | 8.00 | 8.00 |
| 9 | 1.97 | 2.21 | 2.38 | 2.81 | 3.11 | 8.00 |
| 10 | 1.68 | 1.88 | 1.93 | 2.21 | 2.26 | 2.47 |
| 11 | 1.41 | 1.61 | 1.65 | 1.85 | 1.85 | 1.91 |
| 12 | 1.20 | 1.37 | 1.44 | 1.61 | 1.57 | 1.58 |
| 13 | 1.06 | 1.22 | 1.23 | 1.40 | 1.37 | 1.37 |
| 14 | 0.93 | 1.08 | 1.06 | 1.21 | 1.19 | 1.17 |
| 15 | 0.82 | 0.96 | 0.92 | 1.07 | 1.02 | 1.01 |
| 16 | 0.73 | 0.88 | 0.77 | 0.94 | 0.89 | 0.86 |
