Name: CSF INTERCOOLER CORE (DCT ONLY)
Brand: CSF
SKU: 53357
Price: 799.99 CAD
Availability: InStock

CSF INTERCOOLER CORE (DCT ONLY)

Original price was: $ 949.99.Current price is: $ 799.99.

Brand:

Now Available for DCT equipped Veloster N & i30N

With the huge popularity of the manual transmission intercooler, many DCT owners have been asking when we would release a version for the DCT Veloster N / i30 N. Well, the wait is over and CSF is proud to announce the release of the DCT version. After a recent test fit/R&D session, CSF was able to update the intercooler kit for an easy bolt on installation on DCT models.

DCT vs 6MT Intercoolers

The engineers at Hyundai made a slight change to the intercooler outlet for the DCT version. Most likely this slight change was to increase clearance around the transmission on that side of the engine. However, this configuration can be achieved with a 90 degree hose from the intercooler to charge pipe. CSF includes a high temp, 4-ply, reinforced silicone hose specially made by HPS in the new intercooler kit to accommodate for this change. This heavy duty hose is suitable for applications ranging from factory to high boost levels.

Installation is still a true “Drop-in Fit” and requires to modifications or cutting. The OEM hose clamps are used to secure the hose and everything lines up perfectly.

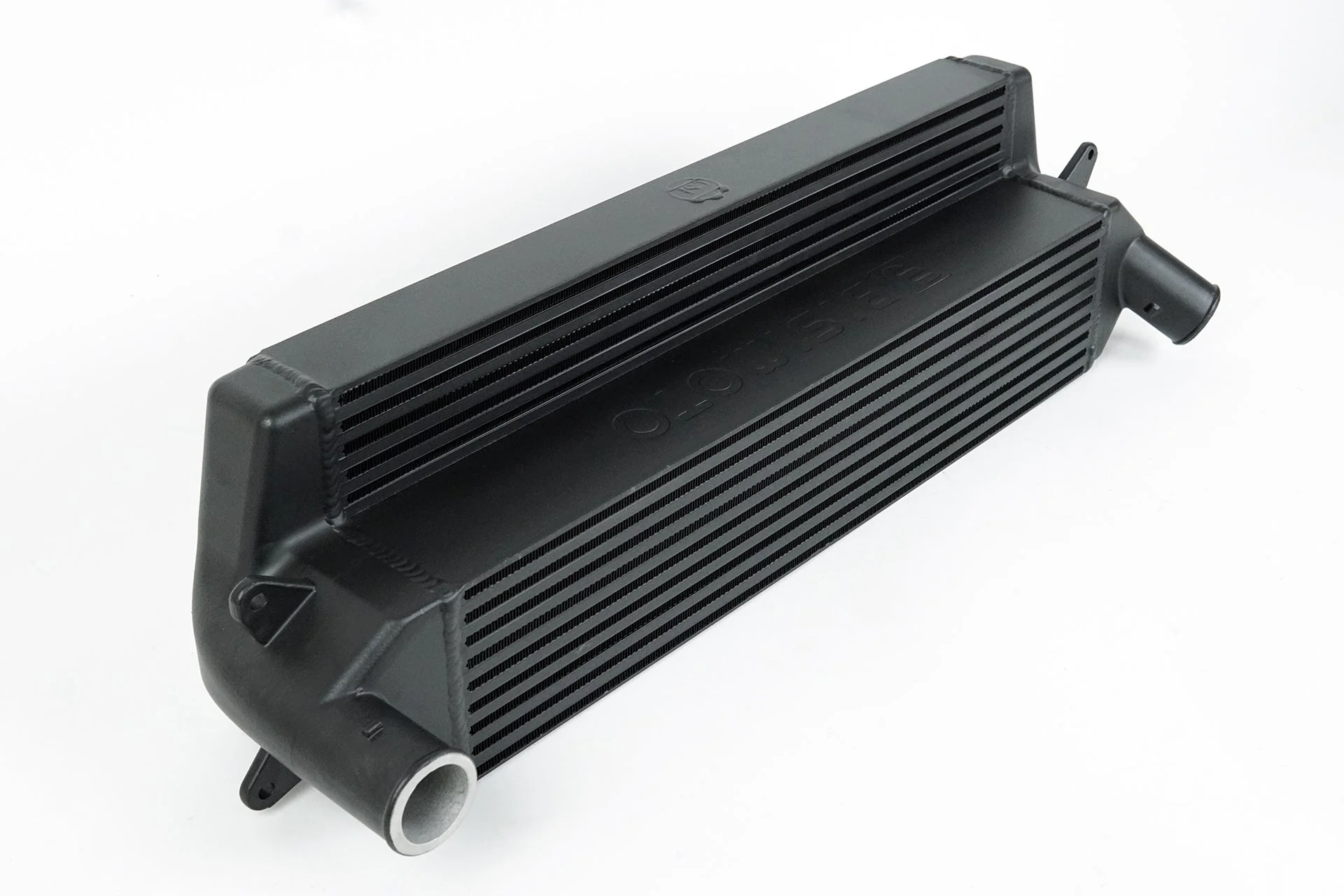

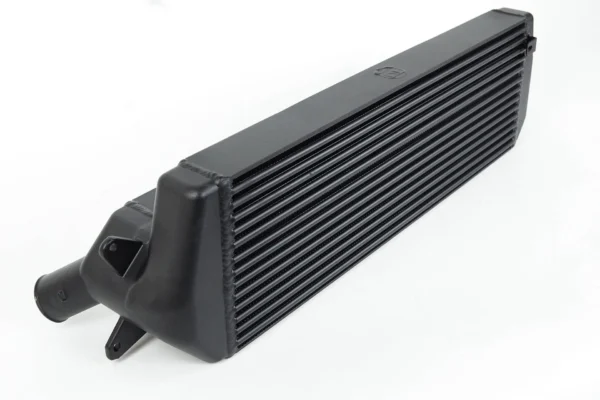

DCT Veloster N / i30 N Stepped core intercooler (CSF #8238/8238B)

Includes intercooler to charge pipe hose for the DCT Veloster N & i30N.
Hose made by HPS for CSF – 90 Degree 2¹/₂” ID High Temp 4-ply reinforced silicone – suitable for factory & high boost applications
Stepped Core Design for Maximum Surface Area Contact and Internal Intake Air-Flow Volume
Largest “Drop-in Fit” Intercooler Available in the Industry
Designed with 3D Scanning/Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization
Lab Tested in CSF’s In-House Wind Tunnel
Rounded Front Face Bar/Plate Design for Optimized Airflow Through the Core
Integrated Air Temperature Sensor Bracket
“Drop-in Fit” Design for an Easy & Quick Plug-and-Play Installation – Download PDF Instructions
Fully Reversible Back to OEM Spec with No Modifications Needed
Available in Both Black (CSF #8238B) and Silver (CSF #8238) Finishes
